synthwood.com backlit pitch/mod wheel modification

  • RGB Led provides red, blue, green, violet, aqua or white back light
  • Clear acrylic wheels with frosted edges
  • Works on the Fatar generic wheel box kit (DSI MEK shown)
  • Operates off of positive voltage/gnd of the pitch wheel

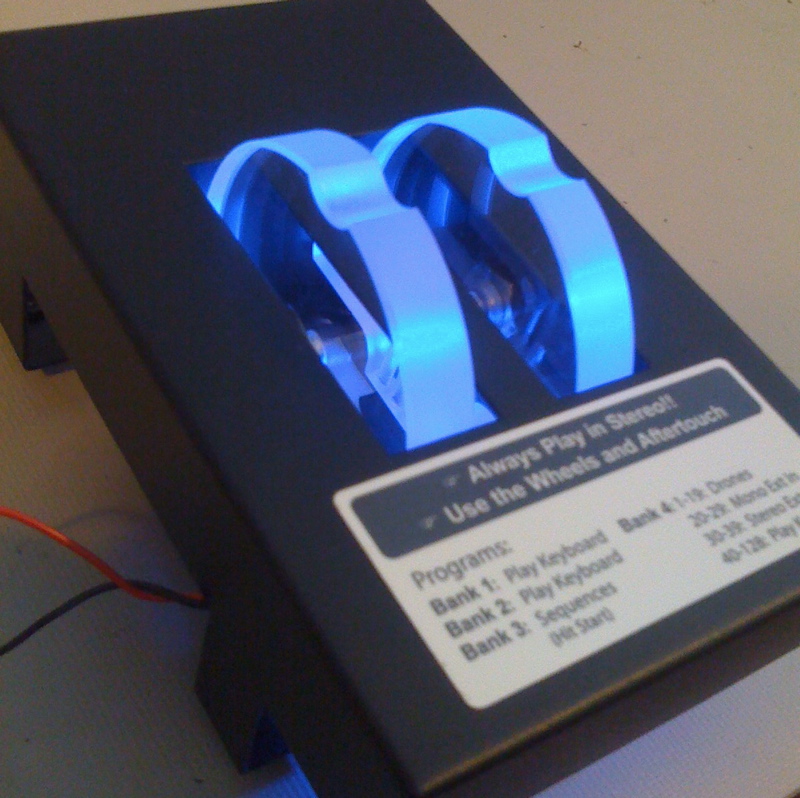

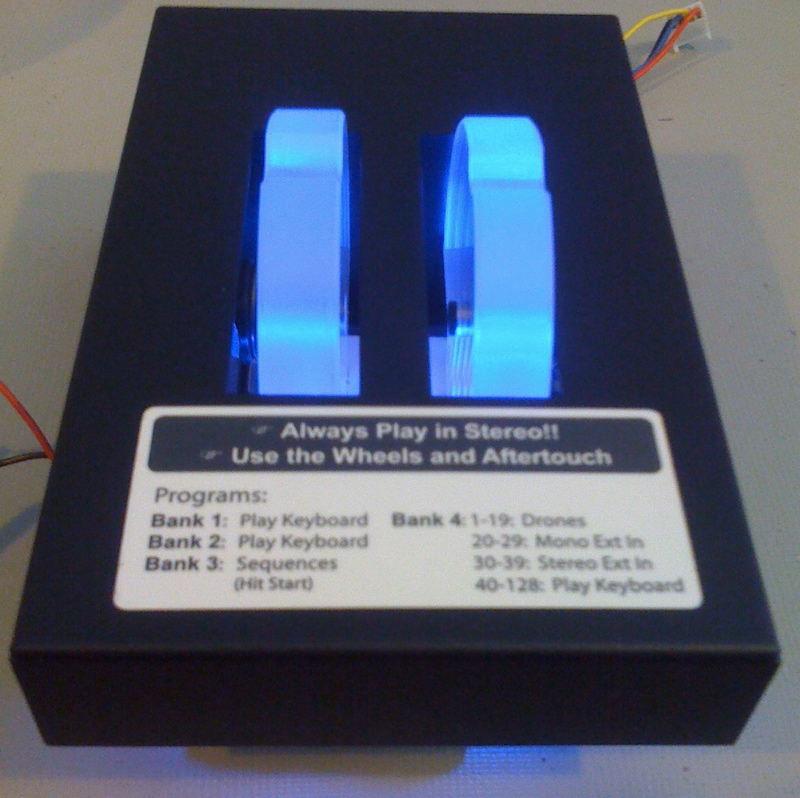

  • Colors shown here are blue and aqua

    Instructions

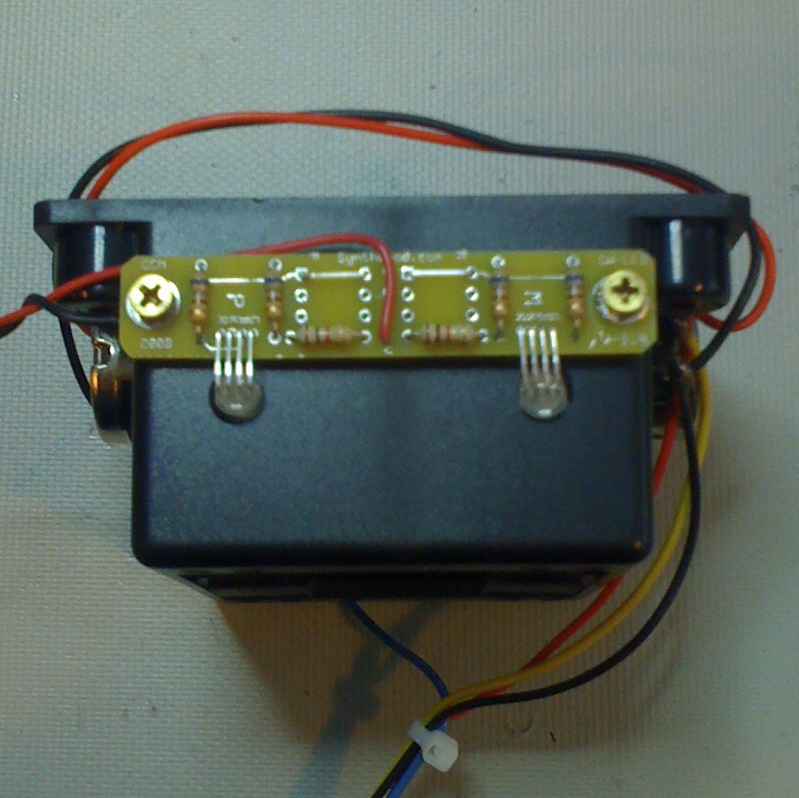

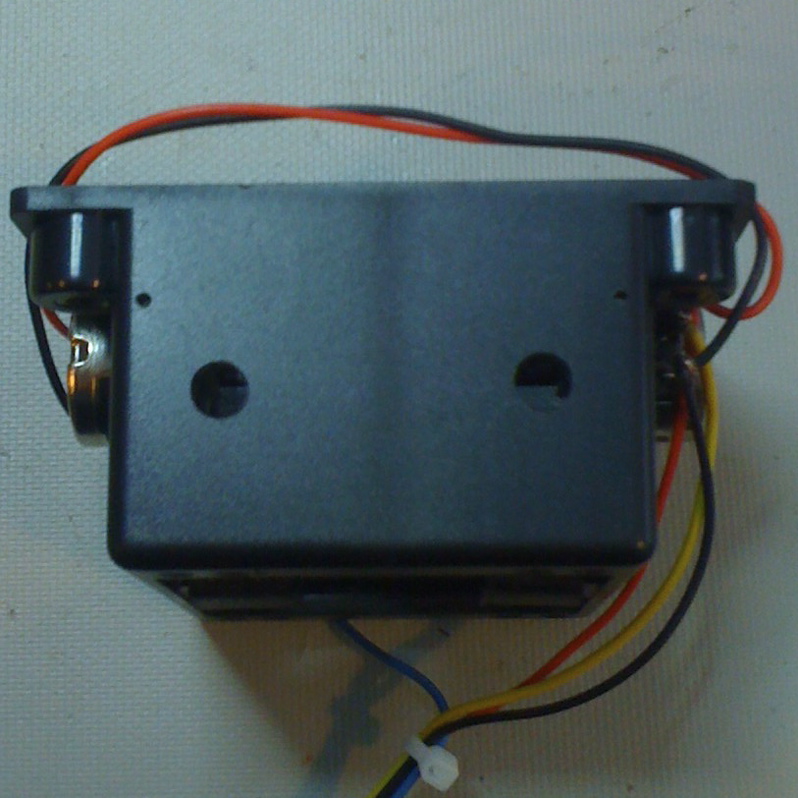

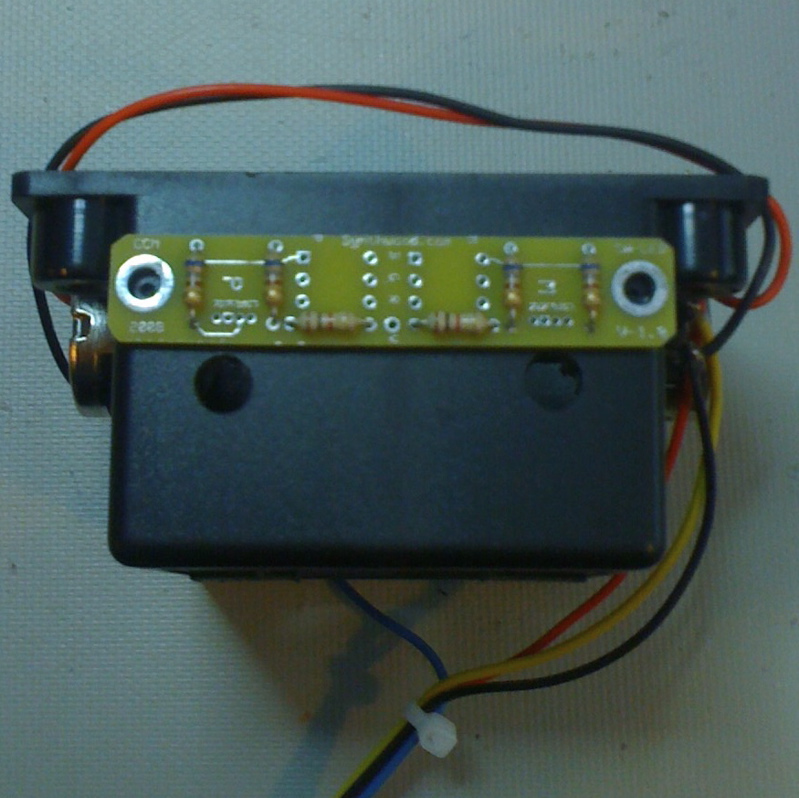

    Installation is fairly simple. You will need to drill two holes in the
    wheel box large enough to insert the LEDs from the LED board. You will
    also need to drill two small pilot holes for the mounting screws. Center
    the new acrylic wheels so that they fit your MEK or Prophet '08 wheel slots
    and then tighten the embedded set screw with an allen key. The pitch wheel
    uses a centering spring which is mounted pot->plastic washer->spring->wheel.
    You may need to remove the rubber cushion on the pitch wheel stop post in order
    to have a 'firmer' center. The new felts on the pitch wheel provide the
    cushion, the mod wheel can continue to use the original rubber cushion.

    Power is available on the pitch pot. You will need to attach the black wire
    from the LED board to ground and the colored wire to positive DC voltage.
    You can use a voltage meter to determine which terminal has the voltage or
    with the power on you can just touch the leads to the two outer terminals
    on the pitch pot. If they light up, you've guessed correctly, if they do
    not, swap them. Once you have figured out the arrangement, solder the leads
    to the terminals.

    Operation

    There are two switch boxes with 3 switches each. This allows for 6 colors
    or off per wheel. You can independently set the colors for each wheel using
    the switches to turn portions of the RGB LED on or off.

    Notes

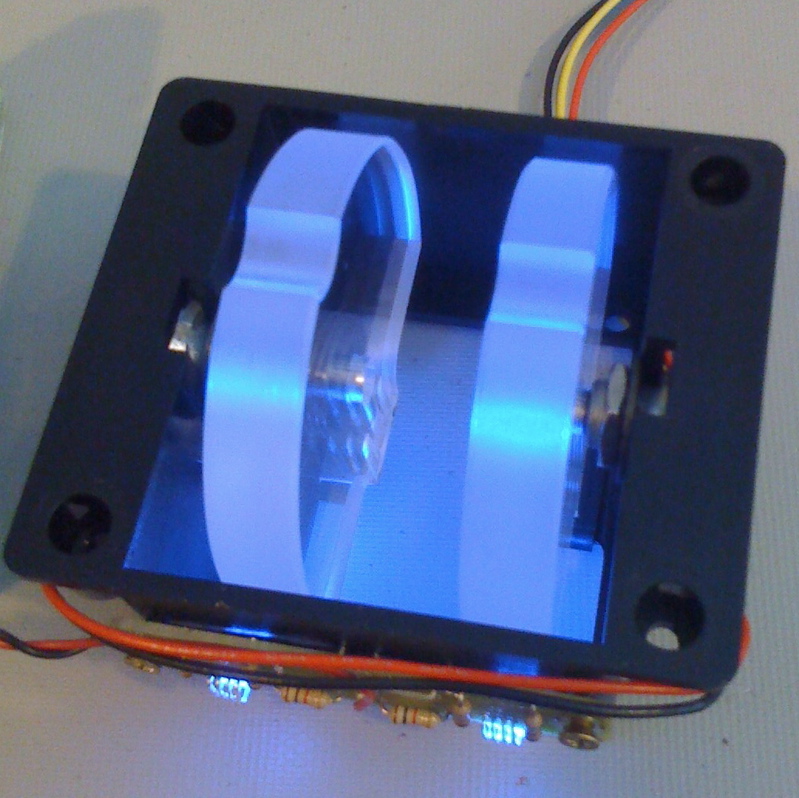

    The LEDs don't need to be precisely centered on the wheels to provide full
    lighting. The wheels have a matte edge finish with a slight grain which
    allows the LED light to diffuse and provide a pleasant but not blinding glow.
